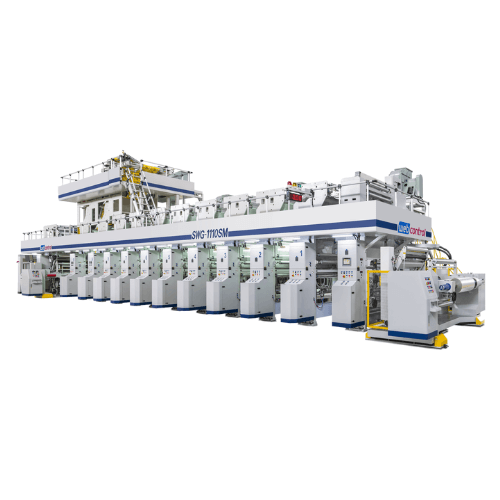

Rotogravure Printing Machines SEG-1110SM

Classification: Machines d'impression par rotogravure

WEBCONTROL MACHINERY CORP.

Pays: Taïwan

Téléphone: 886-4-23587272

Fax: 886-4-23580882

Personne de contact: Vicky Chen

Enquête maintenant

PURPOSE OF MACHINE

This rotogravure printing machine is suitable for both Shrink Sleeve and Flexible Packaging Industry. Turret type unwind and rewind units with automatic splicing system could carry out non-stop production and reduce waste. Besides, each printing unit is equipped with servo motor and controller to increase the accuracy of registering. Doctoring blade system could adjust the angle to achieve great printing quality. With PLC system and HMI, this rotogravure printing machine provides you easy and smoothly operation.

PLC STATION 1

Printing speed control
Plate cylinder length setting
Printing parameter setting
Operation parameter setting
Driver status monitoring
Production additive memorizing
Malfunction alarm information
Tension information monitoring

PLC STATION 2

Automatic control of unwind tension
Diameter detecting control
Dancer roller tension control
Automatic cutting and roll change
Jointing surface sensing control
Automatic pre-drive jointing
Automatic control of infeed tension
E/P transducer control

PLC STATION 3

Automatic control of rewind tension
Decreasing tension control
Dancer roller tension control
Automatic cutting and roll changing
Non-stop roll change
Automatic product length counting
Automatic control of outfeed tension
E/P transducer control

Rotogravure Printing Machines

SUPER	STANDARD	POPULAR	ECONOMY
Main
AC vector motor & driver (22Kw + PG + Fan)	AC vector motor & driver (22Kw + PG + Fan)	AC motor & frequency inverter (15Kw)	AC motor & frequency inverter (11Kw)
Unwind
AC vector motor & driver (5.5Kw + PG + Fan)	AC vector motor & driver (3.7Kw + PG + Fan)	Powder brake 10kg-m	Powder brake 5 kg-m
Low friction air cylinder 63 x 78	Low friction air cylinder 63 x 78	Auto tension control
E/P transducer	Precision air regulator
Load cell & dancer roller	Dancer roller	Load celler	Manual tension control
Infeed
AC servo motor & driver (4 Kw)	AC servo motor & driver (2.2Kw + PG + Fan)	AC motor & inverter (2.2Kw)	AC motor & inverter (1.5Kw)
Very low friction Air cylinder 63 x 78	Very low friction Air cylinder 63 x 78	Low friction Air cylinder 63 x 78	Low friction Air cylinder 63 x 78
E/P transducer	Precision air regulator	Precision air regulator	Precision air regulator
Load cell & dancer roller	Load cell & dancer roller	Dancer roller	Dancer roller
Outfeed
AC servo motor & driver (4 Kw)	AC servo motor & driver (2.2Kw)	AC motor & frequency Inverter (2.2Kw)	AC motor & frequency Inverter (1.5Kw)
Very low friction air cylinder 63 x 78	Very low friction air cylinder 63 x 78	Low friction air cylinder 63 x 78	Low friction air cylinder 63 x 78
E/P transducer	Precision air regulator	Precision air regulator	Precision air regulator
Load cell & dancer roller	Dancer roller	Dancer roller	Dancer roller
Rewind
AC vector motor & driver (5.5Kw + PG + FAN)	AC vector motor & driver (3.7Kw + PG + FAN)	AC vector motor & driver (3.7Kw + PG + FAN)	DC torque motor & driver (2.2Kw + PG + FAN)
Low friction air cylinder 63 x 78	Low friction air cylinder 63 x 78	Auto tension controller
E/P Transducer	E/P Transducer
Load cell & dancer roller	Dancer roller	Load cell cont.	Manual tension control
PLC
Network type PLC	San Shiah high speed PLC	San Shiah high speed PLC	San Shiah PLC
MMI Touchscreen
Color touchscreen 10" x 2	Grey touchscreen 6" x 2	Grey touchscreen 6" x 1	LED Key PAD type
Machine Speed
200 m/min (Max.)	160 m/min (Max.)	120 m/min (Max.)	100 m/min (Max.)
Printing Material
OPP, PE, PET, PVC, CPP, Paper	OPP, PE, PET, PVC, CPP, Paper	OPP, PE, PET, PVC, CPP, Paper	OPP, PE, PET, PVC, CPP
Tension Range
3-30 kg	3-30 kg	3-30 kg	3-30 kg
Unwind/Rewind Diameter
90-800 mm	90-600 mm	90-600 mm	90-600 mm
All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice. Above control system is suitable for rotogravure printing machines. Control components are provided according to customer's requirement. *Control systems for other printing machines are available. Contact us for further details.
This is the detailed information for Rotogravure Printing Machines Control System. The information includes model, name, description and specification for Rotogravure Printing Machines Control System.
