PURPOSE OF MACHINE
- The solventless laminating process is using two-component adhesive. Without solvent involved, this process makes the production more eco-friendly. Precise and proportional speed control on coating section to keep the coat weight consistency during production. Sleeve design for transfer roller helps operation easier. Real time coat weight detection integrated, to help reduce risks and the waste during setup. Detail production report automatically export after job finish.
FEATURE
- Five roller coating system
- Three roller laminating system

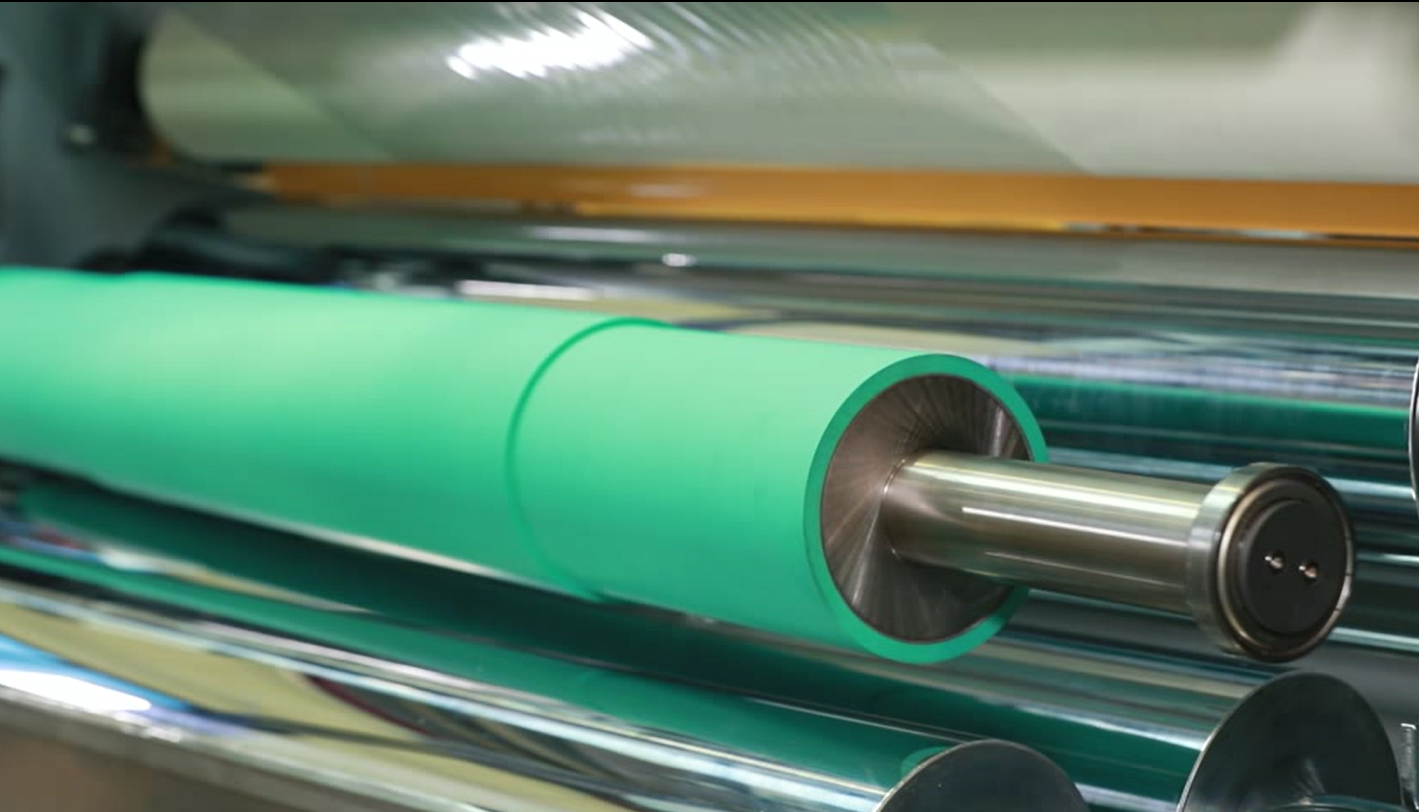

- Easy & quick cleaning coating station
- Accurate adhesive width & dosing control
- Closed loop tension control via dancer roller
| Model | LME-SF800/1000/1300 |
|---|---|
| Machine speed | 400 M/min |
| Material width | 800/1000/1300 mm |
| Min. Material width | 300/400/400 mm |
| Coating roller width | 800/1000/1300 mm |
| Min. Coating width | 280/380/380 mm |
| First unwind diameter | 800 mm |
| Second unwind diameter | 800 mm |
| Rewind diameter | 800 mm |
| Dimensions | 5837(L)×3164(W) ×2966(H) mm |
