Inspection Rewinding Machines INSPECT-SB

Classification: Machines à convertir

Applications: Emballage

Pays: Taïwan

Téléphone: 886-4-23587272

Fax: 886-4-23580882

Personne de contact: Vicky Chen

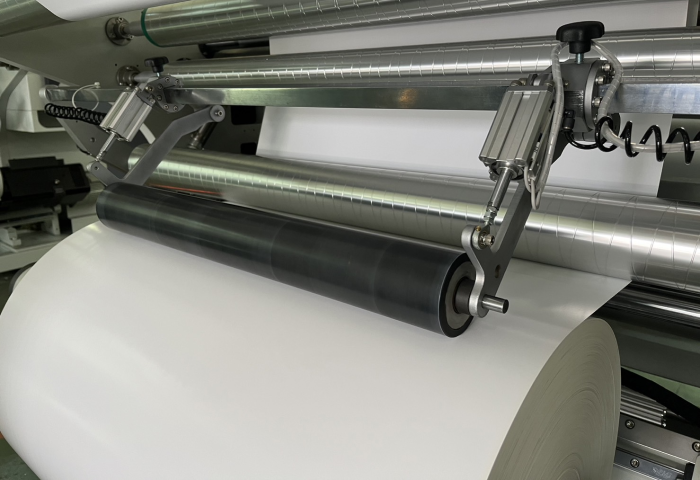

PURPOSE OF MACHINE

This double-side rewinding machine can do more serious inspection for the better quality, especially for packages of medical, cosmetics and some high-price food products. Integrated with automatic defect system, this machine can reach precise and continuous inspection to ensure zero defects.

When any defect is detected by human-eyes, press INSPECTION button and then the machine reverses automatically, the defects will be stopped at center of inspection table for operator to easily find and cut off the part.

All models come standard with MMI touch screen interface. The touch screen has high resolution color as well as a long service life. All models come standard with independent and free-standing operator panels.

STANDARD
Speed(M/min)	300
Available width(mm)	1300/1600
Unwind diameter(mm)	800
Rewind diameter(mm)	800
Digital guiding system	●
Shaftiess unwind/rewind	●
Shaft unwind/rewind	N/A
Cantileverd unwind/rewind unit with 3” air shaft	N/A
Forward and backward operation	●
Tension transducers for unwind and rewind unit	●
Dancer tension control on unwind and rewind unit	N/A
Taper tension mode	●
OPTIONAL
Auto. Defects detection system(100% inspection)	●
Stroboscope	●
Splice Table	●
Trim Slitting System	●
Unwind and rewind diameter increase – 1000mm.	●
Unwind 6” chuck	●
Rewind 6” chuck	●
CE/UL	●
