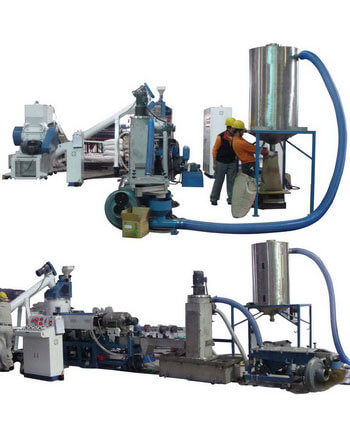

DIE FACE CUTTING TYPE PLASTIC FILM RECYCLING MACHINE |
||||
|
MODEL |
GHR65E |
GHR-85E |
GHR-100E |
GHR-120E |
|
MATERIAL TO BE USED |
HD/LD/LLDPE & P.P. |
|||
|
DENSIFYING TANK |
1 SET, MADE OF STAINLESS STEEL, WITH ROTARY CUTTERS |
|||
|
EXTRUDER SIZE |
65 mm |
85 mm |
100 mm |
120 mm |
|
MOTOR+INVERTER |
50 HP |
75 HP |
100 HP |
125 HP |
|
SCREEN CHANGER |
1 SET, HYDRAULIC SYSTEM |
|||
|
MAX. CAPACITY |
120 KG/HR |
200 KG/HR |
300 KG/HR |
400 KG/HR |
|
CONTROL PANEL |
INDEPENDENT TYPE SWITCH BOARD |
|||
|
DRYING SYSTEM |
CENTRIFUGE UNIT * 1 SET, MADE OF STAINLESS STEEL |
|||
|
STORAGE UNIT |
1 SET, MADE OF STAINLESS STEEL |
|||
|
OPTIONS |
CONVEYOR + METAL DETECTOR, CRUSHER,
SCREW CONVEYOR,
VACUUM PUMP, PRESSURE GAUGE, 2ND EXTRUDER,
FILM ROLL FEEDER, VIBRATING SCREEN, … etc.
|
|||
|
ADVANTAGE TO
USE
CRUSHER
|
1) Easier to handle difference sizes
(loose film, die-cut … etc.)
2) Shorter Densifying type with more even temperature
3) More stable feeding & stable extrusion output, uniform pellet sizes
& better quality
|
|||
|
* Details are available with quotation, specifications could be changed upon request. |
||||
