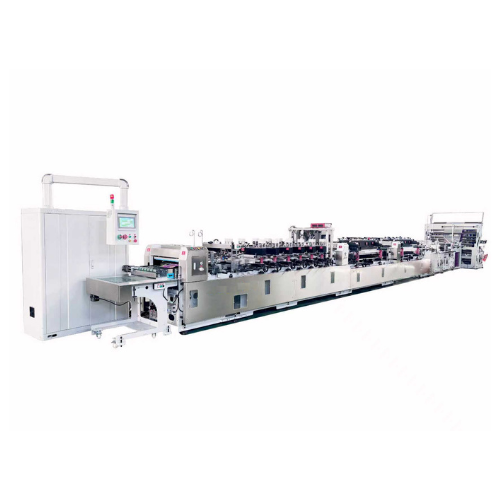

High-Speed Multi-Function Stand-Up Zipper Pouch Bag Making Machine

Classification: Multi-mur PP papier sac faisant la machine

REY LONG MACHINERY INDUSTRIAL CO.,LTD.

Pays: Taiwan

Téléphone: 886-5-5511888

Fax: 886-5-5571393

Personne de contact: William Ho

Enquête maintenant

The JL-L-2TZP600 is Rey Long's flagship high-speed, multi-function pouch bag making machine, capable of producing five bag styles — three-side sealing bags, three-side sealing zipper bags, four-side sealing bags, stand-up doypack pouches (with or without zipper) — on a single platform. Built with a 10 mm steel-plate frame, full servo-motor control (Panasonic), and a PLC touch-screen interface, the machine delivers positional accuracy of ≤0.3 mm and speeds up to 220 pcs/min for three-side sealing bags. Zipper sealing is achieved via ultrasonic wave technology, eliminating heat damage to film. Optional double-unwinding and non-stop accumulator modules maximize uptime for continuous production.

General Food Packaging

Retort Packaging

Frozen Packaging

Tea Packaging

Coffee Packaging

Rice Packaging

Spouted Pouch Packaging

Garment Packaging

Facial Mask Packaging

Pet Food Packaging

Liquid Packaging

Anti-static Packaging

Medical Packaging

Digital Printing Packaging

Specification	Value
Model	JL-L-2TZP600
Speed (3-side seal)	35–220 pcs/min
Speed (3-side seal + zipper)	35–150 pcs/min
Speed (Doypack)	35–120 pcs/min
Bag Types	Three-side seal / Three-side seal + zipper / Four-side seal / Doypack / Doypack with zipper
Applicable Material	Heat-seal laminated film
Film Thickness	30–180 μm
Max Web Width	1240 mm (patch web: 150 mm)
Max Web Roll Diameter	φ600 mm (patch web: φ600 mm)
Bag Width (3-side seal)	100–580 mm
Bag Length	50–420 mm (skip function up to 6× for longer bags)
Bottom Seal Width	5–60 mm
Zipper Width	13 mm
Positional Accuracy	≤0.3 mm
Vertical Sealing	4 groups heating + 2 groups cooling
Horizontal Sealing	4 groups heating + 2 groups cooling
Zipper Sealing	Ultrasonic wave, 1 group
Temperature Range	Indoor – 300 °C
Power Supply	220 V / 3P / 60 Hz, 60 kW
Machine Weight	9,000 kg

Heat-Seal Lamination Technology

Flexible pouch bags are made from heat-seal laminated films — multi-layer structures such as NY/PE, PET/PE, or AL/PE — where the innermost layer melts and bonds when compressed between heated sealing bars. The JL-L-2TZP600 uses 4 groups of heating bars plus 2 groups of cooling bars for each seal (vertical and horizontal). The cooling groups re-solidify the seal bond under pressure before the bag releases, preventing the still-molten film from deforming. This 4+2 configuration allows the machine to maintain consistent seal strength at high speed, across a temperature range up to 300 degrees Celsius for retort-grade films.

Full-Servo Accuracy and Multi-Format Capability

Every motion axis — film feed, sealing, cutting, and zipper insertion — is driven by an independent Panasonic servo motor with closed-loop position feedback. This allows the machine to achieve 0.3 mm or better positional accuracy on pre-printed films by reading registration marks with photo-eye sensors and correcting the film feed in real time. The same servo architecture enables the machine to switch between five bag formats (three-side seal, three-side seal with zipper, four-side seal, doypack, doypack with zipper) through parameter changes on the PLC touch screen rather than mechanical retooling.

Ultrasonic Zipper Sealing

Zipper bags require a different sealing mechanism for the zipper track itself. Heat-sealing a plastic zipper can distort the interlocking profile, making it difficult to open and reclose. The JL-L-2TZP600 uses an ultrasonic sealing unit for zipper attachment — a transducer vibrates the zipper at high frequency, generating localized frictional heat only at the bond interface rather than across the whole zipper cross-section. This produces a precise, clean seal that preserves the zipper profile at the standard 13 mm zipper width.
