Low speed, high torque operation minimizes noise and power consumption – whilst achieving high throughput rates. These machines are particularly suited to the size reduction of bulky or voluminous materials which could include contamination such as metals or stones.
- Slow Speed High Torque Shredding Principle.
- Low Dust and Low Noise Operation.
- Rugged Low Maintenance Design.

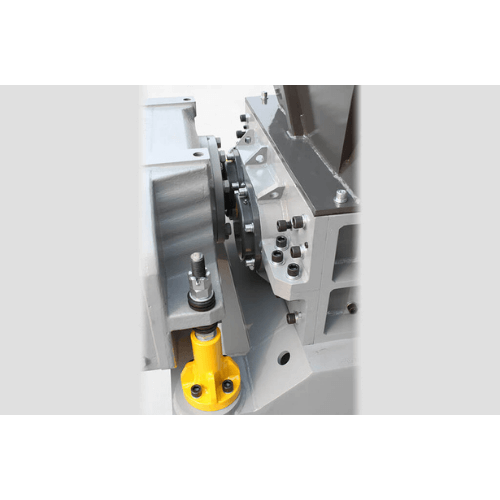

- Shock Absorbing Gearbox Mounting Arrangement reduces Stress on Drive Components.

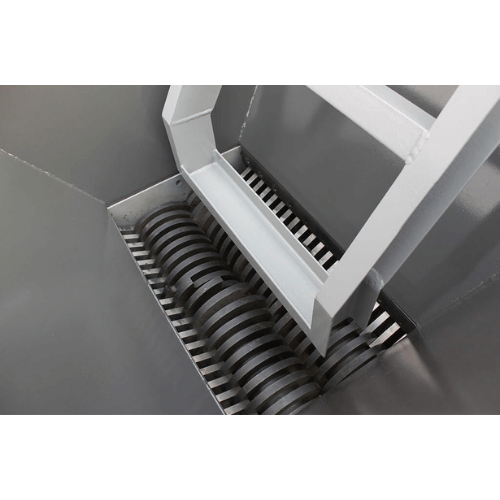

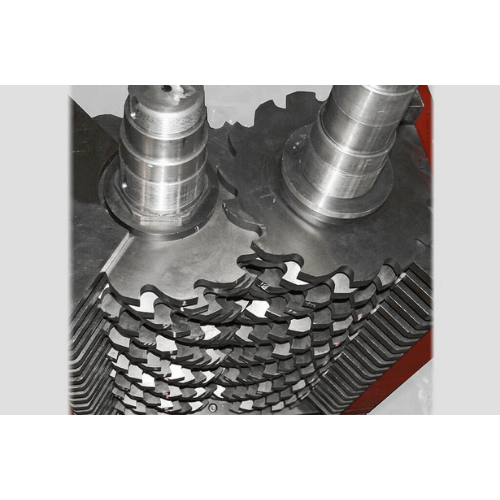

- Strong Blades manufactured from high quality steels are suitable for shredding tough materials.
- Two Piece Split Bearing Housing Arrangement enables quick access to bearings and rotor.
- Advanced Adjustable Sealing System prevents product migration and ensures long bearing service life.
- Stand Alone Electrical Control Panel with Siemens PLC Control System.
- Tested, Approved and Certified to the applicable CE safety standards.
| Model | M300 | M400 | M600 | M800 | M800T | M1000 | M1200 | |
| Main Drive(kw) | 7.5 | 7.5 | 5.5+5.5 | 7.5+7.5 | 15+15 | 15+15 | 15+15 | |
| 18.5+18.5 | 18.5+18.5 | 18.5+18.5 | ||||||
| 22+22 | 22+22 | 22+22 | ||||||
| 30+30 | 30+30 | 30+30 | ||||||
| Rotation Diameter(Φmm) | 276 | 276 | 276 | 276 | 430 | 430 | 430 | |
| Shredding width(mm) | 400 | 500 | 600 | 800 | 800 | 1000 | 1200 | |
| Rotation Speed(rpm) | 13 | 13 | 14 | 14 | 5.4-12 | 5.4-12 | 5.4-12 | |
| 6.0-12 | 6.0-12 | 6.0-12 | ||||||
| 7.5-12 | 7.5-12 | 7.5-12 | ||||||
| 10-12 | 10-12 | 10-12 | ||||||
| Center distance(mm) | 210 | 210 | 210 | 210 | 320 | 320 | 320 | |
| Number of Blades | 15thickness | 20 | / | 40 | / | / | / | / |
| 20thickness | 15 | 20 | 30 | 40 | 40 | / | / | |
| 40thickness | / | 10 | / | 20 | 20 | 25 | 30 | |
| 50thickness | / | / | / | / | 16 | 20 | / | |
| 75thickness | / | / | / | / | / | / | / | |
| 100thickness | / | / | / | / | / | / | / | |
| The quantity of blade hocks | Standard rotor | 1/2/3/6 | 1/2/3/6 | 1/2/3/6 | 1/2/3/6 | 1/2/3/6 | 1/2/3/6 | 1/2/3/6 |
| K type rotor | / | / | / | / | / | / | / | |
| D type rotor | / | / | / | / | / | / | / | |
| Dimension | L | 1500 | 1587 | 2530 | 2710 | 3055 | 3315 | 3574 |
| W | 1222 | 1222 | 1275 | 1275 | 1835 | 1885 | 1965 | |
| H | 1850 | 1850 | 1850 | 1850 | 2200 | 2200 | 2200 | |
| A | 1040 | 1140 | 1330 | 1530 | 1523 | 1723 | 1923 | |
| B | 1154 | 1154 | 1194 | 1194 | 1418 | 1418 | 1418 | |
| C | 604 | 604 | 643 | 643 | 875 | 875 | 875 | |
| D | 518 | 518 | 560 | 560 | 895 | 895 | 895 | |
| E | 840 | 940 | 770 | 970 | 1016 | 1216 | 1416 | |
| Weight | 1370 | 1470 | 2080 | 2300 | 4380 | 4520 | 5120 |
- Plastics –Mixing Plastics, Plastic Drums or Containers, etc.
- Electronic Scrap – WEEE Directive Materials.
- Tires – Car Tires, Debeaded Truck Tires.
- Wood – Pallets etc.
- Packaging Materials – Cardboard etc.
- Metals – Lead, Aluminium, Copper etc.
- Textiles.
