Granulators-GC Series

Classification: Granulator/Crusher

GENOX RECYCLING TECH CO., LTD.

Pays: China

Téléphone: 86-20-66851345

Personne de contact: Jaime Jiang

Enquête maintenant

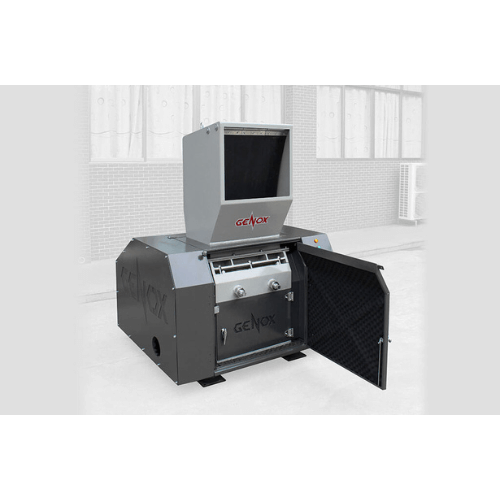

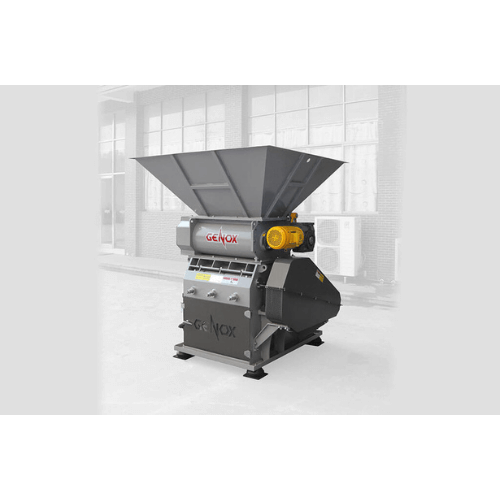

GC Series Granulators are high speed granulation machines designed especially for the efficient size reduction of various materials in a single pass.
These machines are ideal for processing a multitude of materials including plastics, rubber, fibers, copper cable and light non-ferrous metals amongst others.

Plastics – Mouldings, Profiles, Films etc.
Rubber – Tire Rubber, Relaim Rubber Products etc.
Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials etc.
Copper Cable – Household, Telecoms and Industrial Cables including S.W.A.
Textiles – Carpet (Rolls & Tiles) etc.
Foam – Production Waste etc.

Compact design minimizes on-site space requirements.
Inclined, split cutting chamber design.
Oversized, outboard spherical rotor bearings – prevents bearing damage due to product migration.

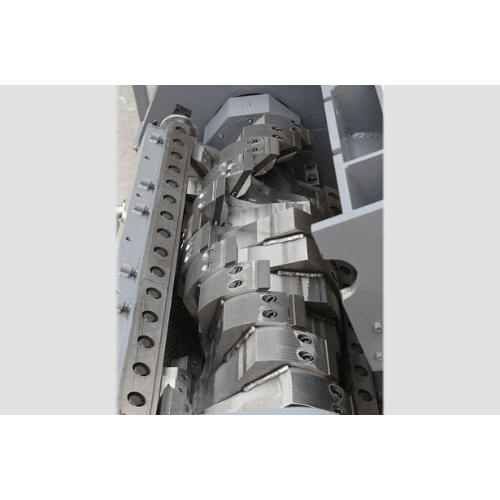

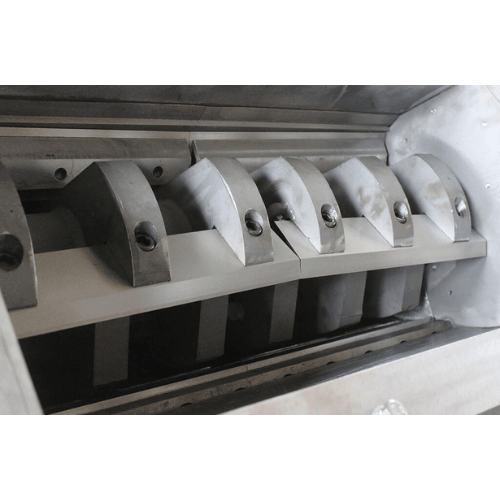

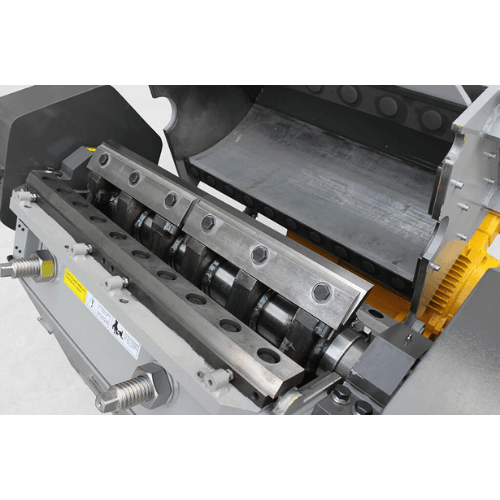

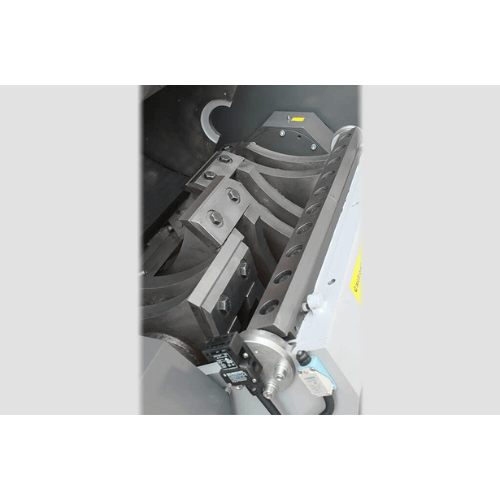

Precision machined rotors (Forward set V-Rotor as standard).

Replaceable wear plates at either end of the rotor shaft.
Standard machines are prepared for air extraction.
Stand Alone Electrical Control Panel - using quality Schneider components and Siemens PLC’s.
Tested, Approved and Certified to the applicable CE safety standards.

Model	GC600T	GC800	GC800T
Dimension (L x W x H) (mm)	1435 × 1177 × 2397	1435 × 1377 × 2397	1641 × 1450 × 2471
Hopper Opening (L x H) (mm)	552 × 747	752 × 747	800 × 815
Rotation Diameter (mm)	Φ320	Φ320	Φ418
Operation Length (mm)	616	816	816
Rotation Speed (RPM)	580	580	580
Screen Size(mm)	Φ12	Φ12	Φ12
Number of Rotor Knives	3×2	3×2	3×2
Number of Counter Knives	2×1	2×1	2×1
Main Drive (kW)	22	30	37
Weight(kg)	Approx 1519	Approx 1749	Approx 2441
