U-Cups (U-Rings) Overview
U-Cups (or U-rings) are versatile lip seals named after their characteristic "U" shaped cross-section. They are specifically designed for reciprocating applications, serving as primary seals in hydraulic and pneumatic cylinders.
01 Key Performance Benefits
Pressure-Energized
The U-shape allows sealing lips to expand against the surface. As pressure increases, the sealing force grows proportionally.
Dual-Purpose Design
Effective as Rod Seals (preventing external leakage) and Piston Seals (preventing internal bypass).
Optimized Friction
Geometry ensures a secure seal with minimal contact area, reducing heat build-up and mechanical wear.
02 Synergy with Back-up Rings
For systems operating above 5MPa (50 bar), pairing with a Back-up Ring is essential to prevent material extrusion.
Stabilizes the U-Cup in dynamic applications, particularly when large extrusion gaps or high-speed cycles are present.
03 Common Industry Materials
Known for superior abrasion resistance and high shear strength. Ideal for heavy-duty hydraulics.
A standard choice for pneumatic cylinders and lower-pressure environments.
Frequently used for the associated back-up rings to provide high-hardness support.
U-Cup Seal Types Comparison
U-Cup Application Scenarios

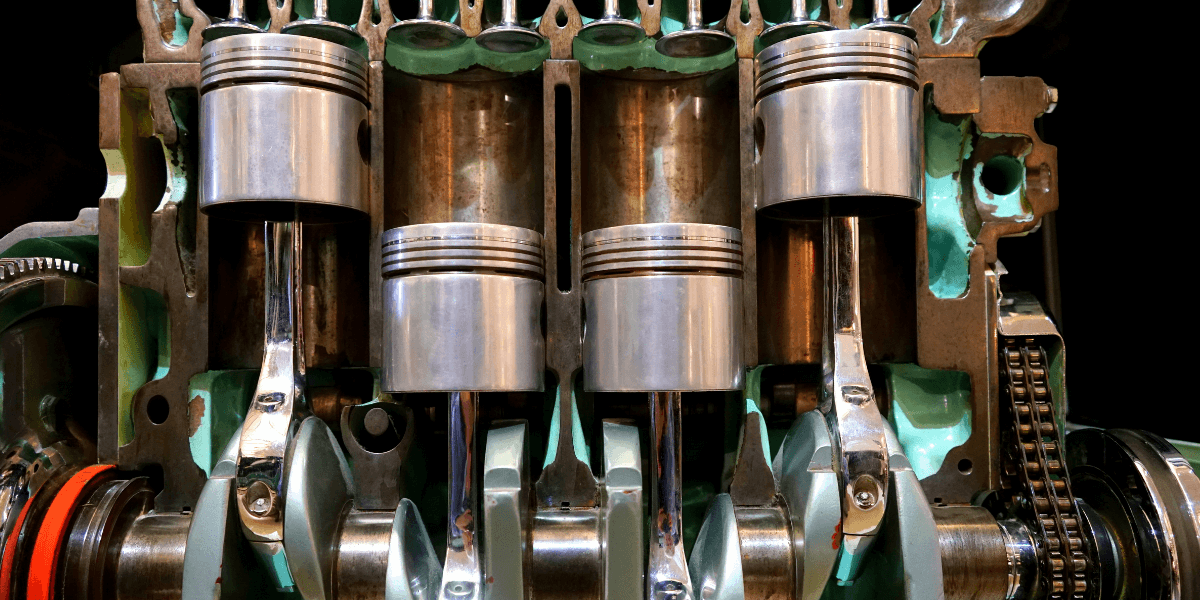

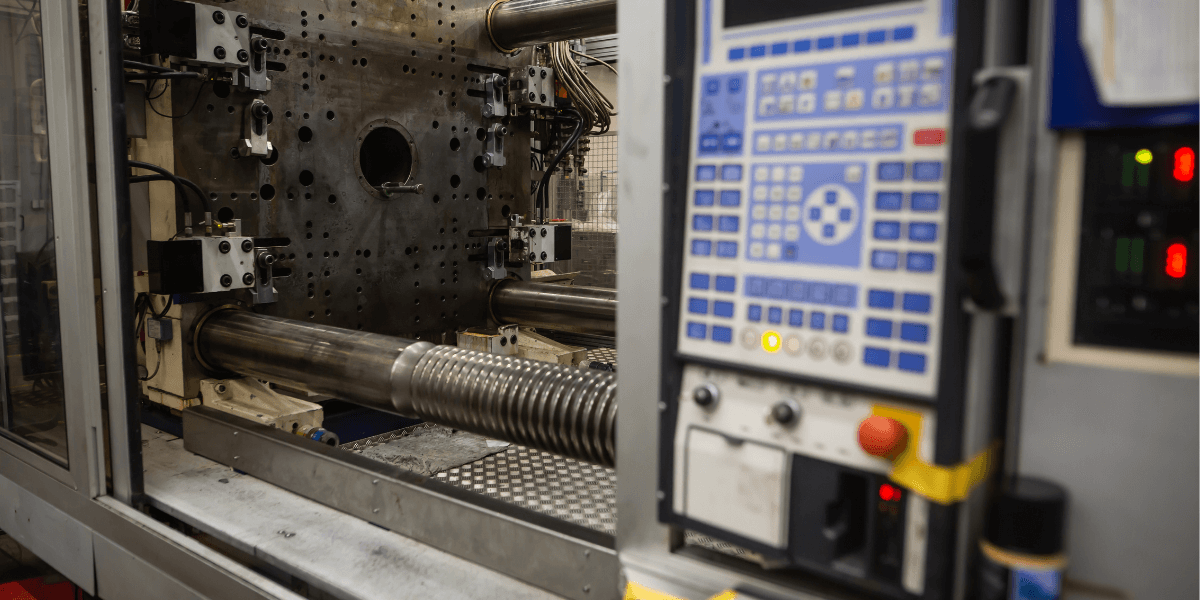

From Industrial Equipment to Precision Hydraulics. When combined with Back-up Rings, they ensure stability under extreme conditions.

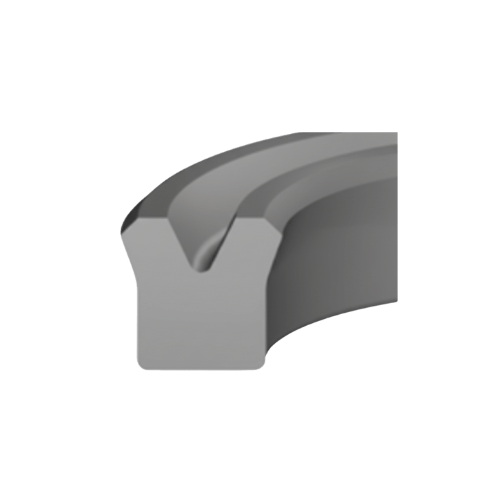

1. Symmetrical U-Cup
Core Characteristics: Equal lip height. Ideal for light-to-medium duty and bidirectional sealing.
2. Piston Seal
Core Characteristics: Installed on the piston to manage internal cylinder pressure and prevent bypass.
3. Rod Seal
Core Characteristics: Installed on cylinder head to prevent fluid leak to atmosphere; includes wiping.
U-Cup FAQ
Common questions regarding installation, selection, and design.
Q1 Can a Symmetrical U-Cup replace a Piston or Rod-specific seal?
Yes, in many cases. A Symmetrical U-Cup serves as a universal replacement because its lips are equal in height.
Q2 Why is the lip design different for Piston and Rod seals?
The design focuses on the "dynamic" side of the seal:
Q3 When should I add a Back-up Ring?
Add a Back-up Ring whenever pressure is high enough to cause "extrusion" (seal forcing into clearance gaps).
- ⚫ Solid Rings
Best support for disassemblable hardware. - ⚫ Scarf Cut
Balance of support & installation ease. - ⚫ Spiral Cut
Most flexible for on-site maintenance.
Q4 How do I choose between different U-Cup materials?
Symmetrical U-Cups are cost-effective for standard pneumatic or low-pressure hydraulic repairs.
Piston-specific U-Cups are better for handling the high side-loads found in bulldozers or excavators.

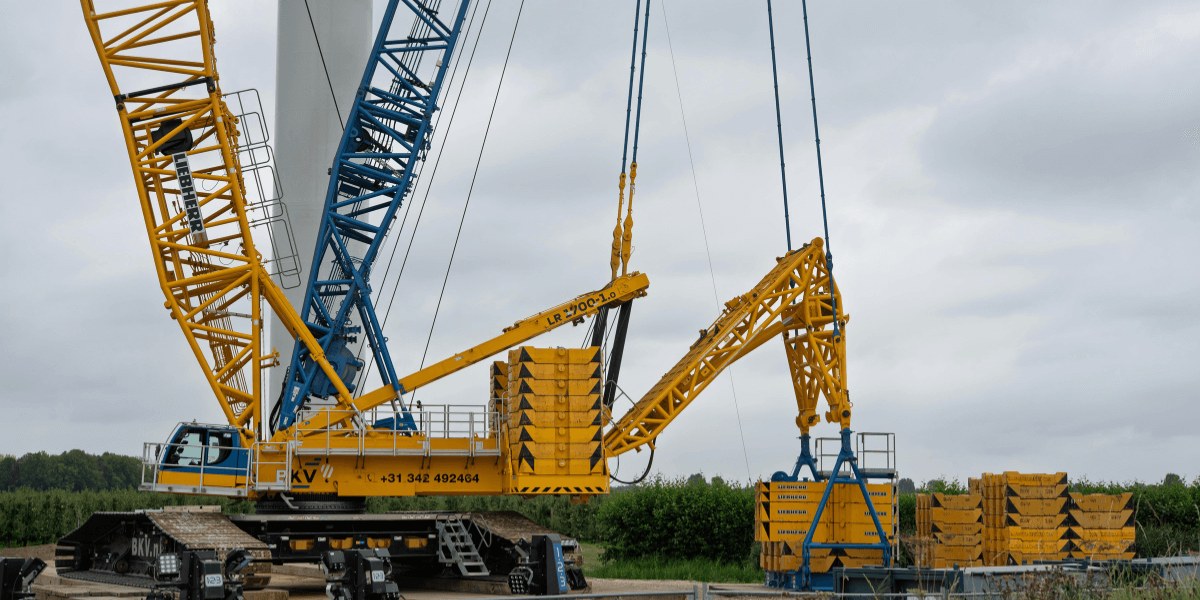

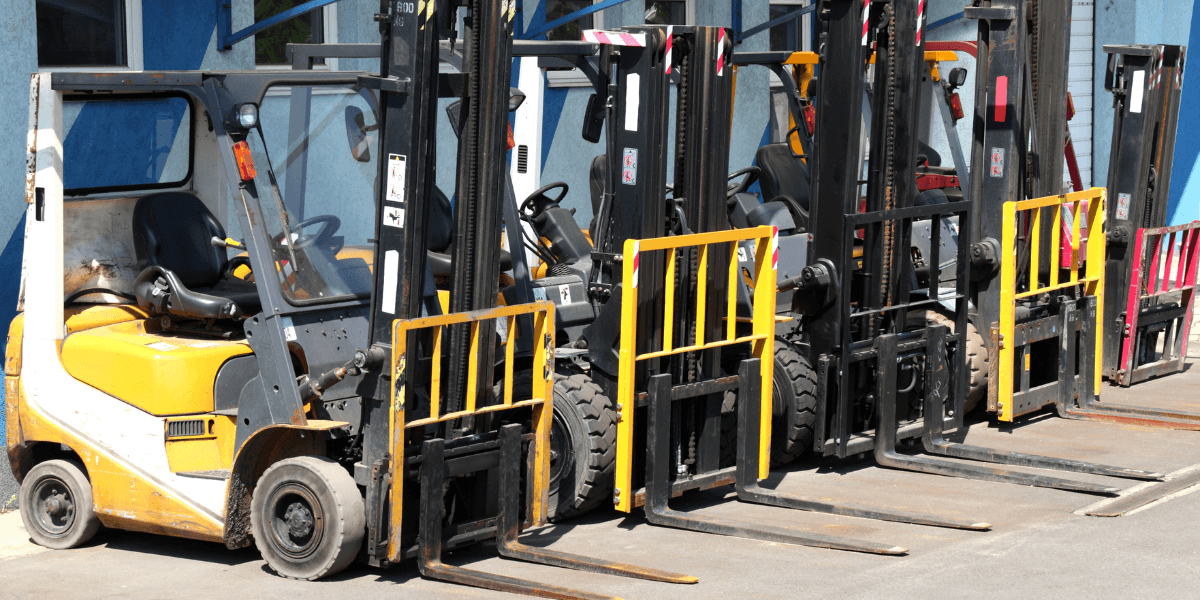

Rod-specific U-Cups are essential for cranes and forklifts to prevent external oil leaks.
