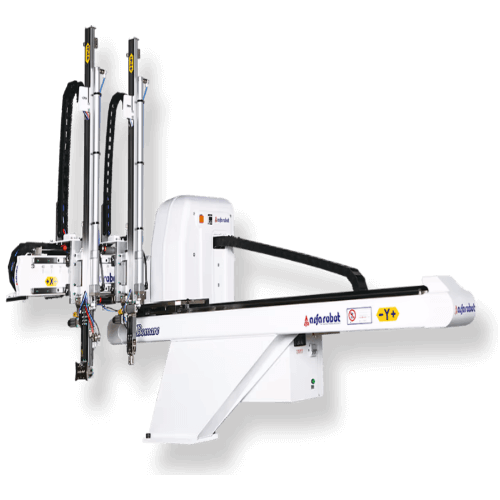

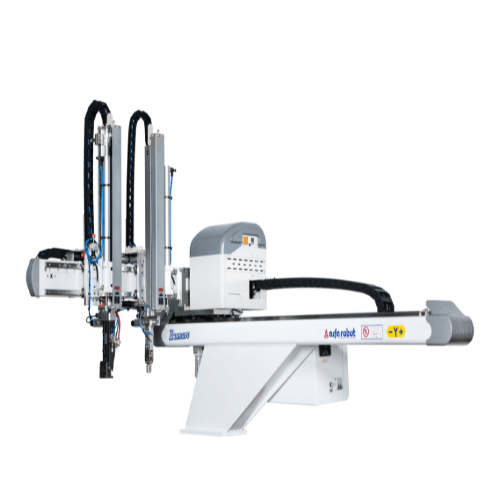

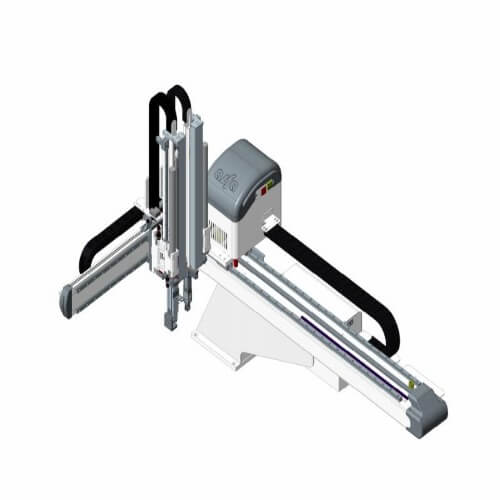

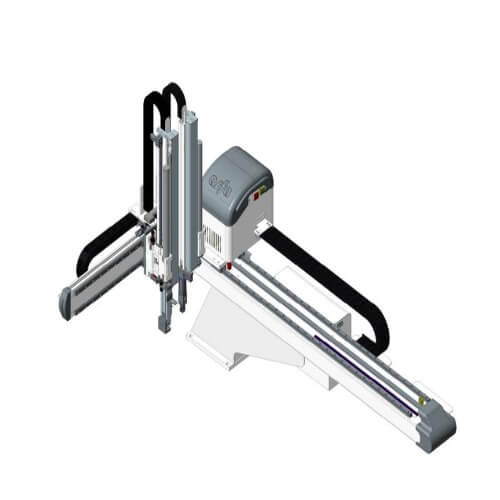

Robots à faisceau servo-entraîné - Série économique Bomarc

Classification: Robot d'injection

Pays: Chine

Téléphone: 86-769-83180326 (237)

Fax: 86-769-83180329

Personne de contact: Kathy Zeng

B□□□□ID/IS/WD/WS
Model: 650/850/950
W : double cut
I : single cut
D: arms (finished arm + material arm)
S : one arm (finished arm)

General specifications

power supply	working pressure	Maximum allowable air pressure	Drive mode	Side pose
1ΦAC220V±20V 50/60HZ	5Kgf/cm 2 0.49Mpa	8Kgf/cm 2 0.8Mpa	Y: AC Servo Motr X, Z: Pneumatic Cylinder	90° Fixed Pneumatic

Main specifications

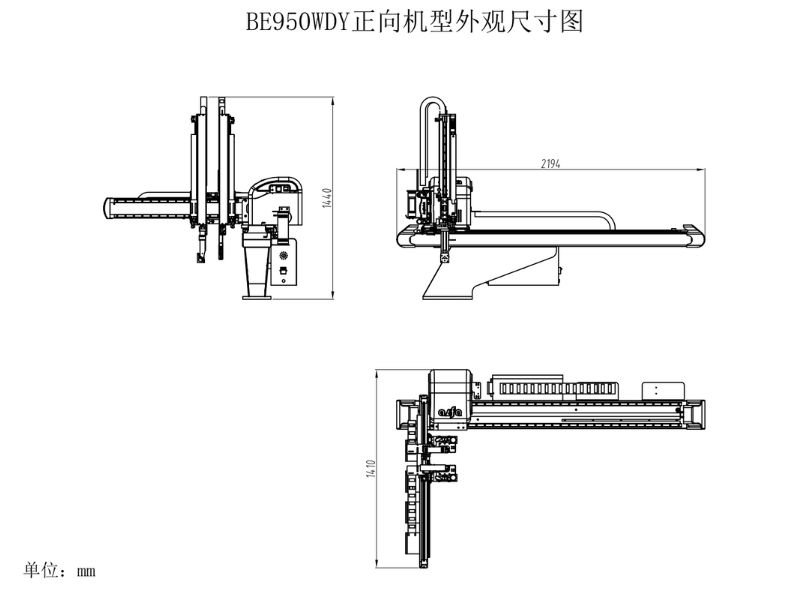

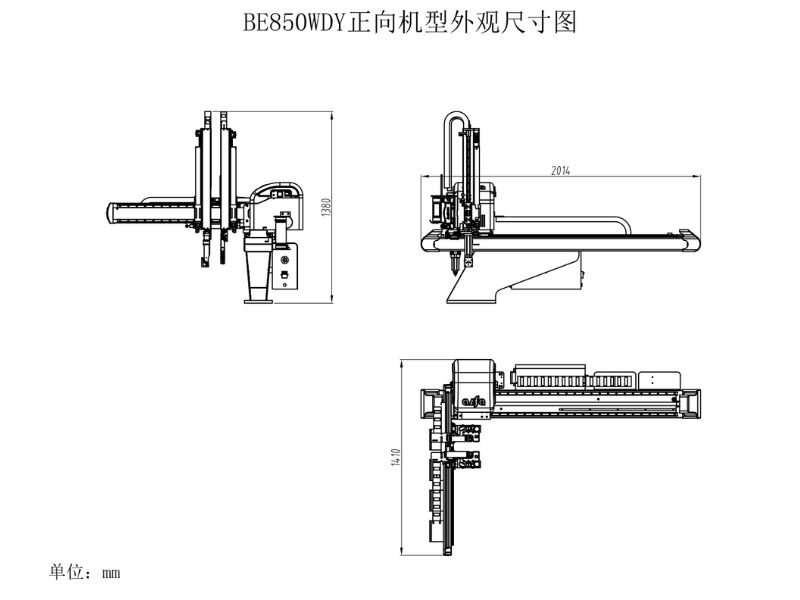

model	BE650 ID/IS/WD/WS	BE850 ID/IS/WD/WS	BE950 WD/WS
Power supply capacity (KVA)	1.0	1.0	1.0
Applicable molding machine (ton)	50-160	160-300	250-350
Horizontal travel (mm)	1300 (1500)	1300 (1500)	1500 (1700)
Horizontal drive	AC servo motor drive	AC servo motor drive	AC servo motor drive
Drawing stroke (mm)	P: 200 R: 100	P: 300 R: 100	P: 300 R: 100
Up and down stroke (mm)	650 (850)	850	950
Maximum load (Kg)	3	3	3
Take time (sec)	2.3	2.6	2.9
Full lap time (sec)	8	9	10
Air consumption (NI/cycle)	12	14	14
Net weight (Kg)	150-210	180-260	180-260
