Hopper Mounted Vacuum Hopper Loader

BC series

Use high speed, powerful, single phase commutator motor and is the smallest and the most economical loader in our range. Compact size, light weight, low noise, easy operation and installation, suit to convey one kind of resin or material, can install upon a hopper dryer or molding machine directly. It is ideal for small machines.

BL series

Easy use by the three phase powerful induction motor. Suitable for medium to large size machines, such as extrusion molding machine.

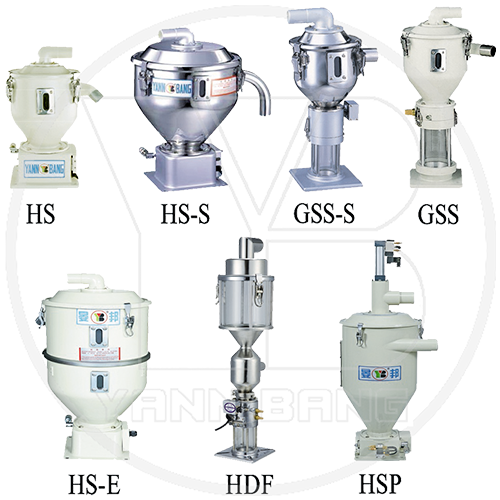

SUCTION HOPPER SERIES

Hopper Mounted Auto Vacuum Loader
Model	BLZ-6	BC-4	BC-4F	BC-3M	BC-4M	BCPW-4
Model	BLE-6	BCE-4	BCE-4F	BCE-3M	BCE-4M
Conveying Capacity(kg/hr)	300	300	300	300	300	300
Horse Power	1HP	1000W	1000W	1000W	1000W	1000W
Horse Power	3Phase	1Phase	1Phase	1Phase	1Phase	1Phase
Total Power(kw)	0.75	1	1	1	1	1
Approx. Weight(kg)	34	19	20	17	18	28
Hopper Capacity(L)	12	12	12	6	12	12
Dimension(cm)	37x58x73	42x49x59	42x49x59	34x43x70	42x49x77	44x51x78
