Classification: Separation Equipment
Pays: China
Téléphone: 8618603781811
Personne de contact: David

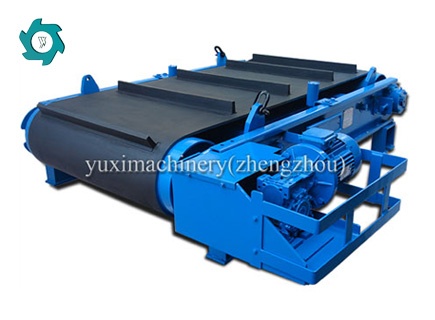

Permanent magnet self-unloading suspension self-unloading iron remover is the most effective equipment to remove a large number of ferromagnetic impurities in thick materials transported by conveyor belt or chute to protect the safety and stability of downstream processing equipment and improve the purity of products.
The permanent magnet self-unloading suspension self-unloading iron remover can be installed parallel or cross-over on the conveyor belt, automatically sucking iron, automatically unloading iron, and realize automatic continuous operation.
The main working principle is to separate black or non-ferrous materials by the magnetic field generated by permanent magnets or coils.
- The magnetic field is constant, the distribution is reasonable, the magnetic field depth is large, and the adsorption force is strong.
- The compact structure requires a small installation space on the upper part of the conveyor belt.
- Uninterrupted magnetic protection eliminates the possibility of a power failure and electrical component failure.
- Available in a variety of sizes to accommodate a wide range of belt widths and load depths.
- Easy to install and low operating costs.
| Model | Adapt to bandwidth(mm) | Rated lifting height(mm) | Magnetic field strength ≤MT | Material thickness ≤mm | Powder ≤kw | speed ≤m/s | Oversize(mm) |
|---|---|---|---|---|---|---|---|
| YXC-6 | 600 | 175 | 70 | 120 | 1.5 | 4.5 | 1080 |
| RCYD-8 | 800 | 250 | 70 | 200 | 2.2 | 4.5 | 1390 |
| RCYD-10 | 1000 | 300 | 70 | 250 | 3.0 | 4.5 | 1660 |
| RCYD-12 | 1200 | 350 | 70 | 300 | 4.0 | 4.5 | 2000 |
| RCYD-14 | 1400 | 400 | 70 | 350 | 4.0 | 4.5 | 2165 |
| RCYD-16 | 1600 | 450 | 70 | 400 | 5.5 | 4.5 | 2400 |
| RCYD-18 | 1800 | 500 | 72 | 450 | 5.5 | 4.5 | 2590 |
| RCYD-20 | 2000 | 550 | 72 | 500 | 7.5 | 4.5 | 2840 |
- The equipment should be lubricated according to requirements, and you should pay attention to the oil temperature, oil pressure, flow rate and other parameters.
- When excessive noise or vibration occurs during the operation, the equipment should be shut down and inspected quickly.
- Pay attention to the product quality and productivity, in order to solve the problem as soon as we find it.
