Powerful Right Vertical Milling Head IK-915-RV

Classification: Tête de fraisage Plano

Yih Kuan Ent Co., Ltd.

Pays: Taïwan

Téléphone: +886 4 24914376

Fax: +886 4 24914397

Personne de contact: Mr. Charles Hung

Enquête maintenant

1. IK milling heads can upgrade or replacement your existing machine body, milling machine or special machine and also it can bring more stable and high-quality machining benefits for work piece cutting.
2. It is used for mold manufacturing or precision processing.
3. The machine processing for travel is 600 mm. We also provide “No slide” format.
4. This product is used in Gantry (Plano) Milling Machine (vertical / horizontal), suitable for heavy metal cutting.
5. Plano milling head series offer accessory head for you to optional.
It will apply for multi-angle machining to upgrade efficiency and longer machining range.
6. This product of standard motor is 15HP. We also offer 20HP for you to optional.
7. Offer pneumatic blade locking device, bearing guide screw, pneumatic leveler for you to optional.

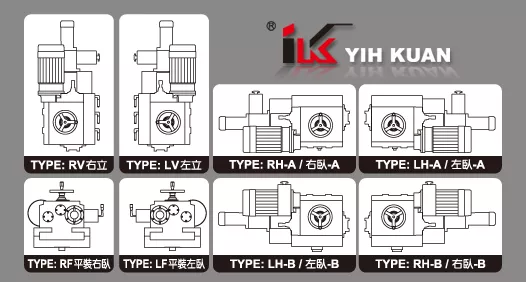

8. There are 10 models in IK Plano Milling Machine Head Series.

Model	Unit	IK-915-RV
SPINDLE
Spindle Bore Diameter		NT50
Diameter of Spindle Nose	mm	Φ128.6
Spindle Motor (2 Option for Selection)	Hp	15(4P)		20(4P)
Step of Spindle Speed	stage	9
Spindle Speed (50Hz)	rpm		I	II	III
		A	412	739	554
		B	69	125	94
		C	183	329	246
Spindle Speed (60Hz)	rpm		I	II	III
		A	495	887	665
		B	83	150	113
		C	220	395	296
WORKING RANGE
Max Diameter of Cutter	mm	250
Travel	mm	600(up 360 /down 240 )
Rapid Travel AC Motor		0.4Kw/0.5Hp AC 3 Phase 4 Poles x 1/40
Rapid Travel Speed	mm/min	175(50Hz) 215(60Hz)
Reversal Slide		2.5mm/rev →\|\|← 0.02mm
STANDARD ACCESSORIES (● INCLUDE IN PRODUCT)
Spindle Motor (12.5HP/15HP)		●
Rapid Travel AC Motor		●
OPTIONAL ACCESSORIES (○ APOLEGAMY)
Pneumatic Blade Locking Device		○
Bearing Guide Screw		○
Pneumatic Leveler		○
IK-A90 Angular Head		○
IK-D90 Deep Head		○
IK-U90 Universal Head		○
IK-U45 Universal Head		○

Country of Origin		Taiwan
Weight (Approximate)	kg	752
Warranty		1 year (non artificial mistake)
