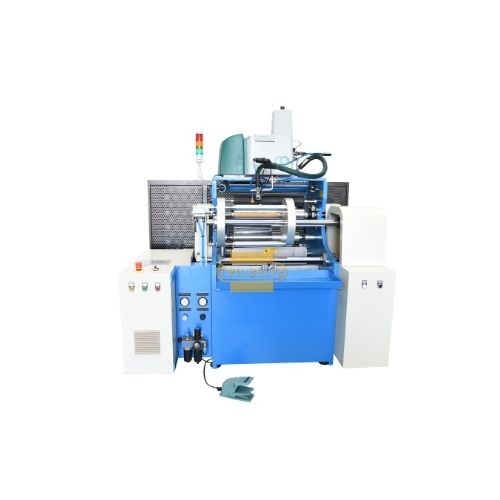

Name: Three-Shaft Type Semi-Automatic Aluminum Foil & Cling Film Rewinder (SR-3S 20-50)
Brand: Tru Brite Machinery Co., Ltd

Three-Shaft Type Semi-Automatic Aluminum Foil & Cling Film Rewinder (SR-3S 20-50)

Classification: Enrouleur de film aluminium semi-automatique

Tru Brite Machinery Co., Ltd

Pays: Taiwan

Téléphone: 886-3-9906271

Fax: 886-3-9906651

Personne de contact: Min Rong Wu

Enquête maintenant

Compatible with multiple materials: Supports rewinding of aluminum foil, cling film, and stretch film for high application flexibility.
Durable and stable structure: Accommodates core inner diameters from 25–75 mm and jumbo roll widths from 200–500 mm to meet diverse size requirements.
Automatic tension control: Equipped with brake adjustment and pressure detection systems to ensure consistent roll tension and product quality.
Simplified operation: Features automatic rewinding, cutting, roll release, and shaft change. Operators only need to load and unload materials manually.
Fixed-length film feed: After cutting, the machine automatically feeds a short segment of film for easy attachment to the core—enhancing workflow efficiency.
Optional glue applicator: Improves material adhesion and speeds up the rewinding process.

Model	SR-3S(20-50)
Raw Material	Aluminium foil / Cling film / stretch film
Max mother roll diameter	700 mm
Mother roll inner core diameter	3” (76 mm)
Mother roll available width	200 - 500 mm
Material thickness	9 - 20 micron
Length of the finished rolls	3 - 500 m
Finished paper cores I.D.	25 - 75 mm
Max finished rolls diameter	150 mm
Finished paper roll length	205 mm - 520 mm
Speed	500 M/min (Max.)
Installed power	4KW
Compressed air	0.5 - 0.8 Mpa
Power supply	220V, 50Hz, 3ph
Dimensions Lx Wx H	1660 x 1660 x 1350 mm
Net weight	1200 kg

The SR-3S 20-50 Three-Shaft Rewinder is designed for rewinding aluminum foil, PE/PVC cling film, and stretch film. It features a sturdy structure, supports core sizes from 25–75 mm and roll widths of 200–500 mm.
