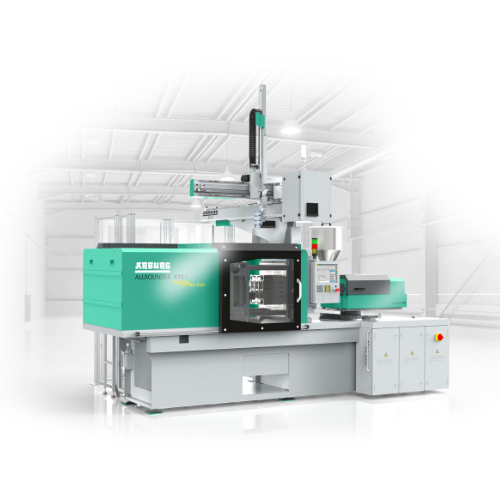

ALLROUNDER 470 E GOLDEN ELECTRIC

Classification: All-Electric Injection Molding Machines

ARBURG GmbH + Co KG Succursale de Taïwan

Pays: Germany

Téléphone: +886 4 23597475

Fax: +886 4 23597481

Personne de contact: Mitchell Yang / Managing Director

Enquête maintenant

ARBURG ALLROUNDER 470 E GOLDEN ELECTRIC is an all-electric injection molding machine. The "GOLDEN ELECTRIC" series signifies a machine that combines the high performance of electric technology—known for precision, energy efficiency, and low-noise operation—with an excellent price-performance ratio.

Technical Specifications
Clamping Unit

Clamping force: 1000 kN
Distance between tie bars (w x h): 470 x 470 mm
Mould mounting platens (w x h): 637 x 637 mm
Opening stroke: max. 350 mm
Mould height, min.-max.: 250-500 mm
Platen daylight, max.: 600-850 mm
Weight of movable mould half, max.: 760 kg
Ejector force | stroke: max. 40 kN | 175 mm
Dry cycle time (EUROMAP): min. 1.4 s - 329 mm
Injection Unit
This model is available with two EUROMAP injection unit sizes:
170 and 290, with various screw diameters available for each

Specification	Unit	Injection Unit 170	Injection Unit 290
Screw diameter	mm	25 / 30 / 35	30 / 35 / 40
Calculated stroke volume	max. cm³	59 / 85 / 115	106 / 144 / 188
Shot weight (PS)	max. g	54 / 77 / 105	97 / 132 / 172
Injection pressure	max. bar	2500 / 2000 / 1470	2500 / 2000 / 1530
Injection flow	max. cm³/s	78 / 114 / 154	98 / 134 / 176

Machine Dimensions & Weight

Net weight of machine:

with injection unit 170: 4900 kg
with injection unit 290: 5000 kg
Machine dimensions (L x W x H):
Length: 4267 mm (unit 170) / 4439 mm (unit 290)
Width: 1620 mm
Height: 2050 mm / 2124 mm (with unit 290)
Feed hopper capacity: 50 L

Drive and Connection

Total connected load: 21 kW
Cooling water connection: DN 25
