Single-Layer Bottom Blow Moulding Machine for 20L~30L jerry can
Single-head, Single-station
Resin

HDPE (Marlex 50100)

Products

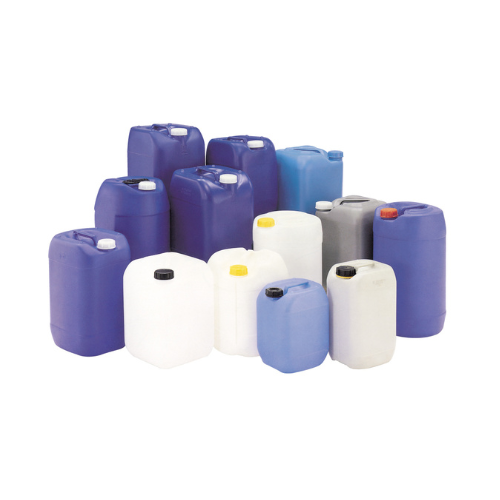

20/25 Liter jerry can

production

120 pcs/hr

Driving motor

75 hp AC motor with inverter control

Extruder

75 mm dia., L/D=30:1

Output

170 kgs/hr (for HDPE virgin grade)

Head design

Single head
Torpedo design with double spider support leg

Die lip size

180 mm dia. (max.)

Oil hydraulic motor

25 hp induction motor

Clamping plate ( H x W ) 720 mm x 550 mm
Clamping force 30 tons (300 KN) (max)
Clamping stroke 480 ~1000 mm
Mould thickness 500 mm (Min)
Carriage shuttle stroke 920 mm
Tonnage pressure 180kg/c㎡(max.)
Postcooling Two station, one is combined with deflash position;
Deflash Top/bottom and handle deflash
