- The TC5T has the feature of single module control two points temperature, making the production process more intelligent.
- The settings for insulation and temperature rise can help to effectively control the temperature during the injection molding process. The machine has a built-in buzzer and smart soft start function, which can effectively reduce the impact during startup.
- The manual output in case of temperature sensor unusually and the output percentage limit setting are also highlights of its design, providing better protection for the equipment and improving production efficiency.
ARICO - The Best Solution Of Hot Runner Temperature Controllers
ARICO Technology and worldwide's rubber and plastic injection industry manufacturers have cultivated a long and stable co-operation relationship between us for many years. We was founded in 1987, base on sophisticated manufacturing technology, and focus on the research and development and innovation of industrial control instrument technology. We are not only good at producing customized precision Hot Runner Temperature Controllers and related application equipment, but also provides high-quality Hot Runner Temperature Controllers with the most convenient setting mechanism, stable quality, at a reasonable price to manufacturers in Taiwan, China, the United States, India, Argentina, Israel, Mexico, Thailand, Malaysia, Southeast Asia and other countries. In addition to accumulating and stabilizing partners for related instruments with Hot Runner Temperature Controllers, ARICO continues to conduct research and development in order to provide more stable and efficient machine stability, just for achieving a higher efficiency and stable instrument technology level on temperature control, displacement sensing, pressure sensing, injection molding machine IoT on rubber and plastic industry.

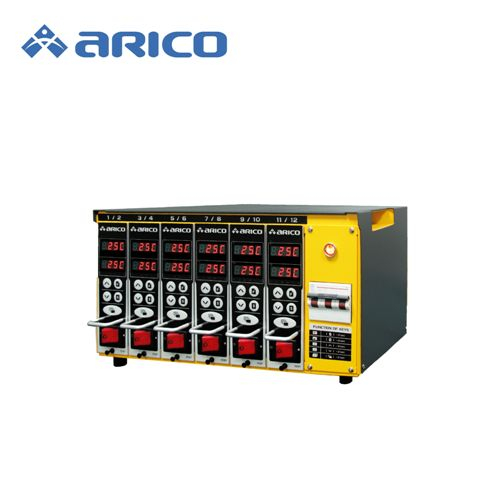

TC5T
|
TC5T-1
(2 zones)
|
TC5T-2 (4
zones)
|
TC5T-4 (8
zones)
|
TC5T-6 (12 zones)
|
Type
|
T5B02
|
T5B04
|
T5B06
|
T5B08
|
Power
Switch Capacity(A)
|
32
|
32
|
63
|
63
|
Output
Connector
|
16pins x1
|
16pins x1
|
16pins x2
|
24pins x2
|
Power
Cable
|
5.5mm² x 5C x 3M
|
5.5mm² x 5C x 3M
|
8mm² x 5C x 3M
|
8mm² x 5C x 3M
|
Easy
Input Switching
|
Yes
|
Yes
|
Yes
|
Yes
|
Dimension
W x H x D (mm)
|
100 x 192 x 301
|
179 x 214 x 329
|
281 x 214 x 329
|
383 x 214 x 329
|
TC5T
|
Model
|
Control Points
|
2 Zones
|
Power Input
|
230Vac±10%,50/60Hz
|
Power Consumption
|
7W
|
Power Output
|
3450W,230VAC/15A(Every module)
|
Output Mode
|
Zero Cross/Phase angel
|
Input Temp. Sensor
|
J/K type
|
Temp. Unit
|
°C/°F
|
Temp. Control
Range
|
0~600°C / 32~999°F
|
Output Alarm
|
Six modes
|
Control Accuracy
|
±0.25%FS
|
Measurement
Accuracy
|
±0.25%FS
|
Storage Temp.
|
-20~70°C / -4~158°F
|
Working Temp.
|
-10~50°C /14~122°F
|
Humidity
|
10~80%RH. (non-condensing)
|
Fuse
|
Fast response ceramic FF20A 500V 6.3*32
|
Detection Function
|
Current/ Fuse open circuit/ TRAIC
short-circuit
|
Communication Mode
|
RS-485 (Standard MODBUS), Optional
|
Communication rate
|
9600/19200/38400/57600/115200
|
Specification
|
TC5E
|
TC5H
|
TC5T
|
Control
Points
|
1 zone
|
1 zone
|
2 zone
|
Power
Input
|
230Vac±10%,50/60Hz
|
230Vac±10%,50/60Hz
|
230Vac±10%,50/60Hz
|
Power
Consumption
|
7W
|
3W
|
7W
|
Power
Output
|
3450W,230VAC/15A
|
3450W,230VAC/15A
|
3450W,230VAC/15A
|
(Every module)
|
Output
Mode
|
Zero Cross/Phase angel
|
Zero Cross/Phase angel
|
Zero Cross/Phase angel
|
Input
Temp. Sensor
|
J/K type
|
J/K type
|
J/K type
|
Temp.
Unit
|
°C/°F
|
°C/°F
|
°C/°F
|
Temp.
Control Range
|
0~600°C / 32~999°F
|
0~600°C / 32~999°F
|
0~600°C / 32~999°F
|
Output
Alarm
|
Six modes
|
Six modes
|
Six modes
|
Control
Accuracy
|
±0.25%FS
|
±0.25%FS
|
±0.25%FS
|
Measurement
Accuracy
|
±0.25%FS
|
±0.25%FS
|
±0.25%FS
|
Storage
Temp
|
-20~70°C / -4~158°F
|
-20~70°C / -4~158°F
|
-20~70°C / -4~158°F
|
Working
Temp
|
0~50°C/32~122°F
|
0~50°C/32~122°F
|
-10~50°C /14~122°F
|
Humidity
|
10~80%RH. (non-condensing)
|
10~80%RH. (non-condensing)
|
0~80%RH. (non-condensing)
|
Fuse
|
Fast response ceramic F20A 250V
6.3*32
|
Fast response ceramic FF20A
500V 6.3*32
|
Fast response ceramic FF20A
500V 6.3*32
|
Detection
Function
|
None
|
Current/ Fuse open circuit/
TRAIC short-circuit
|
Current/ Fuse open circuit/
TRAIC short-circuit
|
Communication
Mode
|
None
|
RS-485 (Standard MODBUS),
Optional
|
RS-485 (Standard MODBUS),
Optional
|
Communication
Rate
|
None
|
9600/19200/38400/57600/115200
|
9600/19200/38400/57600/115200
|
